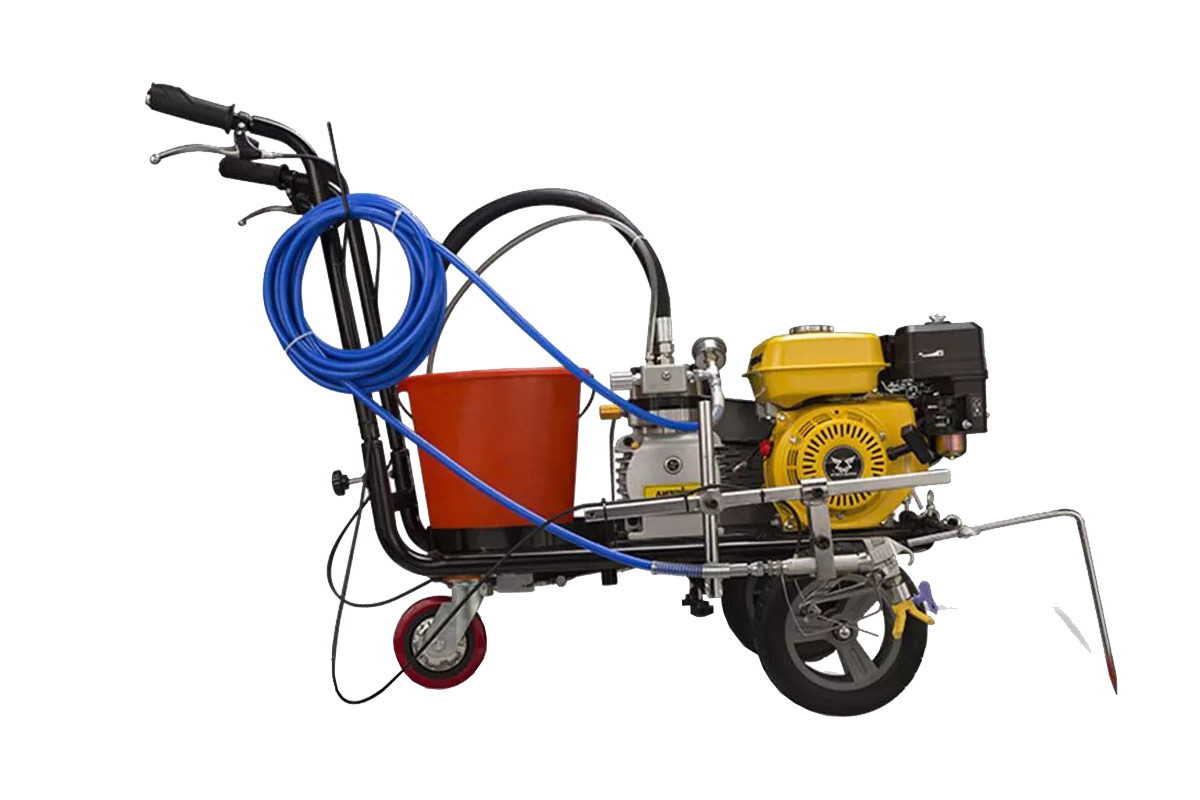

HW-6L Road Marking Machine is suitable for marking lines on the plastic running tracks or artificial lawns.
1. Airless spraying paining technology for which the high-pressure pump is drivenby a gasoline engine as been adopted in the line marking machine to create clear,smooth, saturating and even limes, providing a high working efficiency;
2. Both sides of the spraying gun are equipped with a limiting disc plates, ensuringthe line free of raw edges, such plates may be lift through a pulling line insteering, turning flexibly;
3. The spraying gun may be conveniently dismantle different nozzles and control theline width, suitable for common airless spraying for marking or labels;
4. Road line marking machine runs by pushing,with convenient turning ,reliable orientation and flexible turning.
| Model | HW-6L |
| Type | Single Nozzle |
| Motor power | 4.3hp |
| Unloading flow | 6L/MIn |
| Max output pressure | 25mpa |
| HIgh pressure pipe strength | 35mpa |
| HIgh pressure pipe length | 6*10m |
| Max spray width | 200mm |
| Weight | 72kg |
